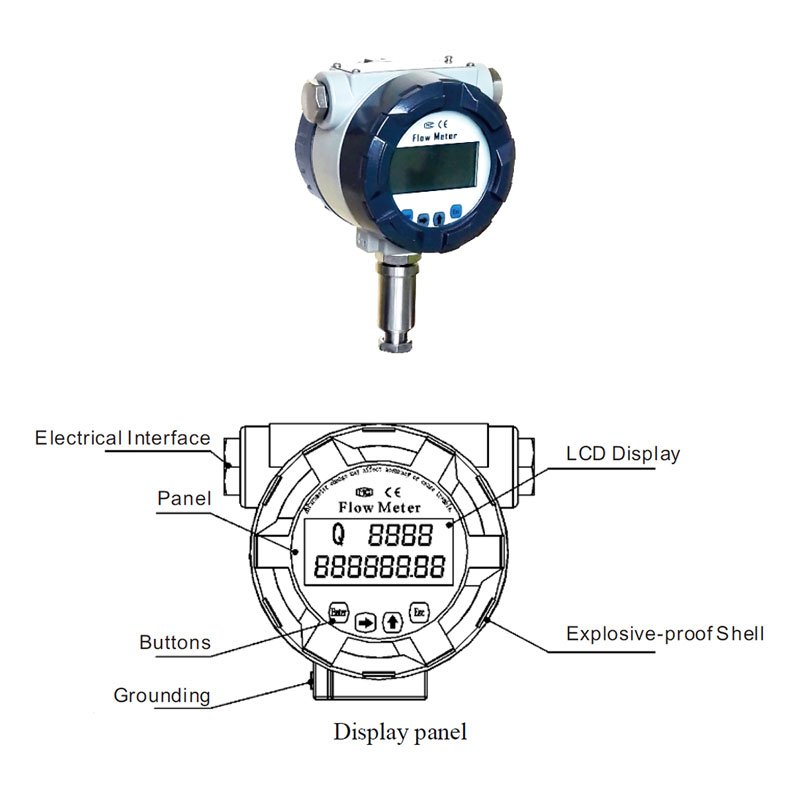

Aspecto de la pantalla digital del medidor de flujo de la serie SLW
Hay cuatro teclas: "Enter", "→", "↑", "Esc".
| Keys | Description |
| Enter | Save the value and advance to next menu |
| → | For numerical values, move cursor position |
| ↑ | To change number unit, setting |
| Esc | Return to measuring model |
Contraseña
| Password | Description |
| 1234 | Modify Parameters |
Descripción del Menú
| Menu | Parameter | Setting | Authority | Description | ||
| F-1 | Unit | Select | User | Value | Flow Unit | Total Flow Unit |
| 0 | M3/h | M3 | ||||
| 1 | L/h | L | ||||
| 2 | L/min | L | ||||
| 3 | US Gal | US Gal | ||||
| 4 | UK Gal/min | UK Gal | ||||
| 5 | US Gal/h | US Gal | ||||
| 6 | UK Gal/min | UK Gal | ||||
| 7 | KG/h | Kg | ||||
| 8 | t/h | T | ||||
| 9 | Ft3/h | Ft3 | ||||
| F-2 | Damp time | Input Value | User | Unit: Second Value: 0~99s | ||
| F-3 | Max flow rate | Input Value | User | Unit: The same to the F-1 | ||
| F-4 | Min flow rate | Input Value | User | When the flow rate lower than min flow rate, the flow rate will display 0; The unit is the same to the F-1 | ||
A continuación se muestra el vídeo para mostrarle cómo cambiar la unidad de flujo.
